Tool Assemblies

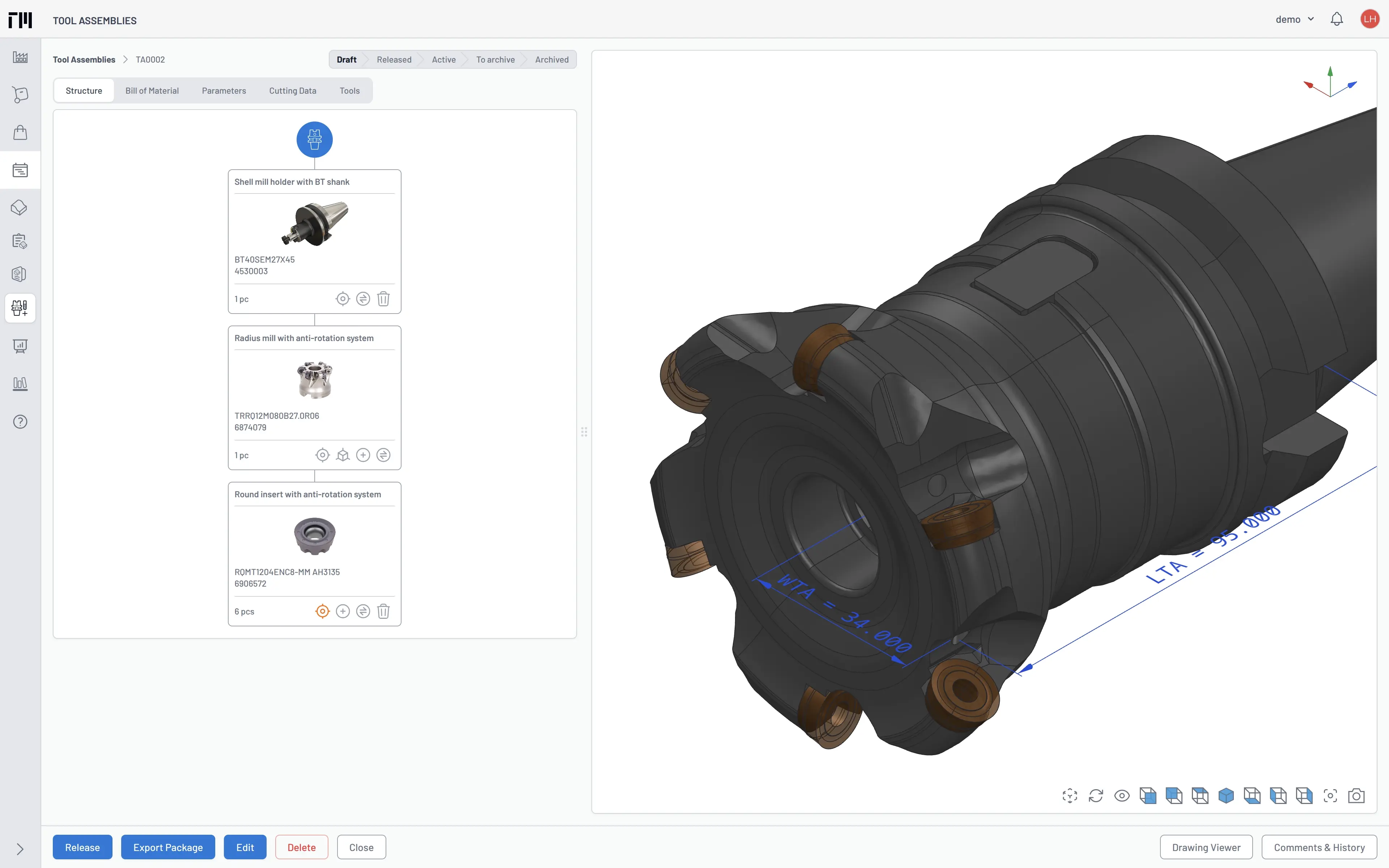

View Tool Digital Twin in 3D
A tool assembly can be simple, with just few adapters, holders, and cutting tools, but it can also become as complex as any other mechanical system. Tooling Metrics speeds up the process by helping you quickly navigate through assembly structure, and select which components to add, exchange, adjust, or remove, with instant updates reflecting your changes.
All trademarks, logos, and brand names displayed on the product are the property of their respective manufacturers. They are used solely for identification and informational purposes. Use of these trademarks does not imply any affiliation with or endorsement by their owners.
Getting instant dynamic feedback when build a tool assembly is essential, that why our CAD Viewer offers almost instant rendering whenever you make a change.
With all the view functions you have been familiar in CAD/CAM software, start navigating through the model with no learning time.
You can quickly locating a product in CAD Viewer by hover the pointer to Assembly Builder node.
Switch between the Basic model type, which is ideal for CAM simulation, and the Detailed model type, which is more suitable for assembly instruction, at any time.
You can view assembled dimensions right inside the 3D model.
An up-to-date and precise generic tool catalog is contribute by a great machinist community.
